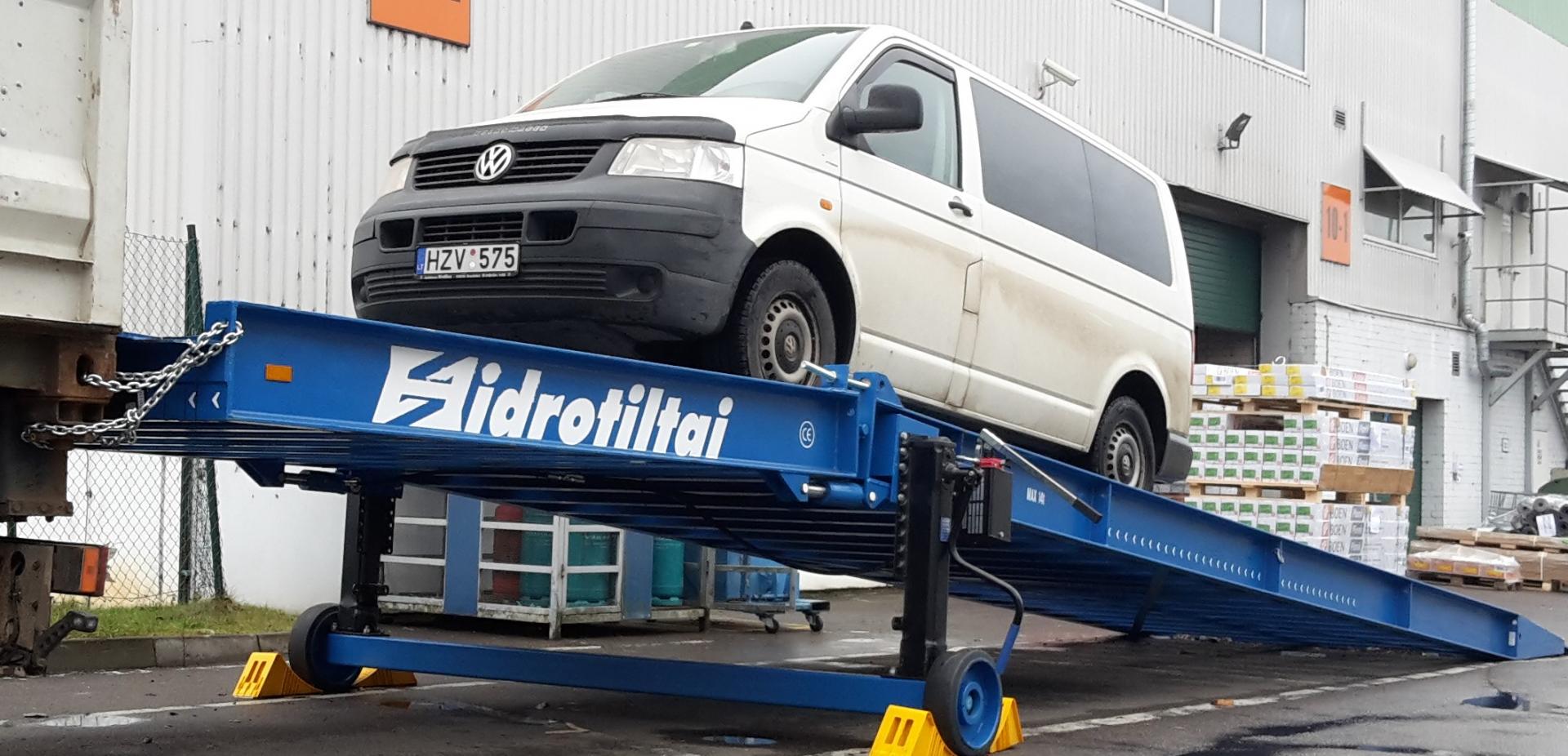

MOBILE LOADING RAMPS
14 tons with additional adjustable bridge

MODEL : MR9_12x2.4_1 tested according to standards LST-EN -1526. Tested MS ( maintenance service . Capacity 14 tons.
DIMENSIONS: Width (B): 3500mm Width (U): 3200mm Lenght (L): 11900 mm Height (h): 850 mm Stroke (H-h): 700 mm Support (R) 2700mm Bridge width ( parts is placed on the support) 550mm
PLATFORM: Longitudinal load-bearing beams welded from variable resistance to bending profile , lateral connections used profile IPE140, increase the rigidity of the platform is made diagonal design through the use of binding strips 100x6. Front bridge made of 12mm thickness, 420mm in width, the longer side milled. Frame and hydrocylinders connections produced by laser cutting 12mm thick loops. Termination bridge consists of 10mm thick sheet with stiffening ribs and transverse welded metal pins 8x8.

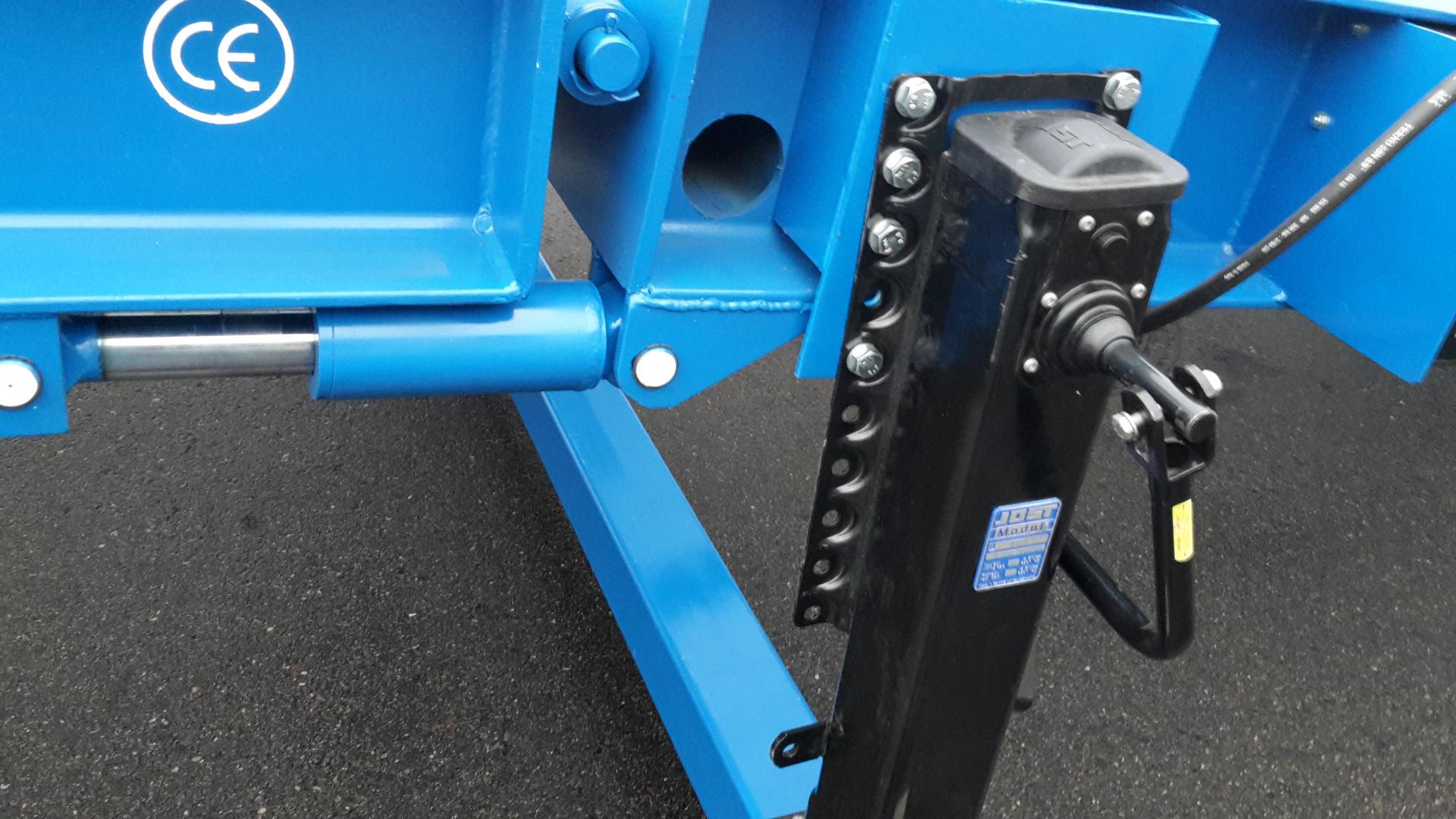

​FRAME: Made from tube 140x140x6, Laser-cut connectors. Frame connector used in compensating bearings. Connection axis used 45mm diameter calibrated rod.
​​COVERAGE: Before painting node cleaned with a wire brush, cleaned special liquid. Covered with one layer of primer and two coats of polyurethane paint.
THE BRIDGE FRONT: Construction welded from 12mm thick sheet.
REAR BRIDGES: Construction welded from 12mm thick plate, and a special Laser-cut stiffeners.

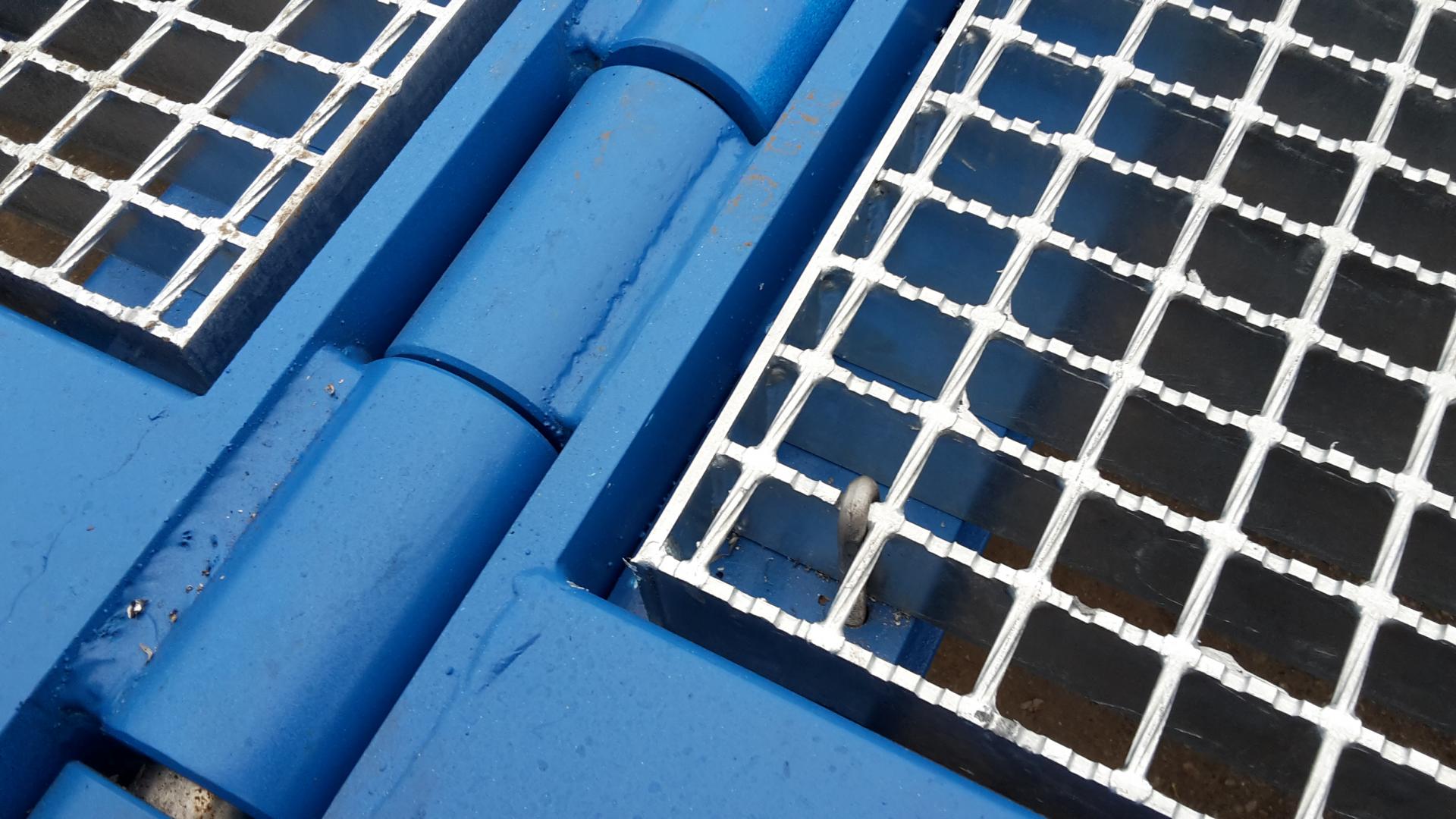

GRID : rods and welded from 4mm thick and 40mm in height toothed (serrated) bands. Galvanized.
WHEELS: 358mm in diameter and 100mm in height abrasion resistant SOLIDIDEAL company.
HYDRO: : -2 Units Cylinders Cylinder type – Piston Pump-type piston Tank capacity - 10 liters Oil- NESTE 46 Operating temperture --30ºC - + 50 ° C
SAFETY: „Zebra“ type of moving parts marking. Hydro lines infringement protection. Chain links with piled transport. Deck grating tooth. Night lighting Bearing capacity (max) 14000kg.
DEVICE COLOR: Still nodes - RAL 7037 , Moving nodes - RAL 5014 Marking - RAL 1003 All elements of the collection galvanized.


​A brief description of the operating model MR14_12x2.4_0.5: 1. The unit can operate only when the bridge is placed on a fixed support and is attached to the chains. 2. When charging the main hydro-system valve to be opened. 3. On the driving device: with a load of not more than 10km / h without load of not more than 20km / h
