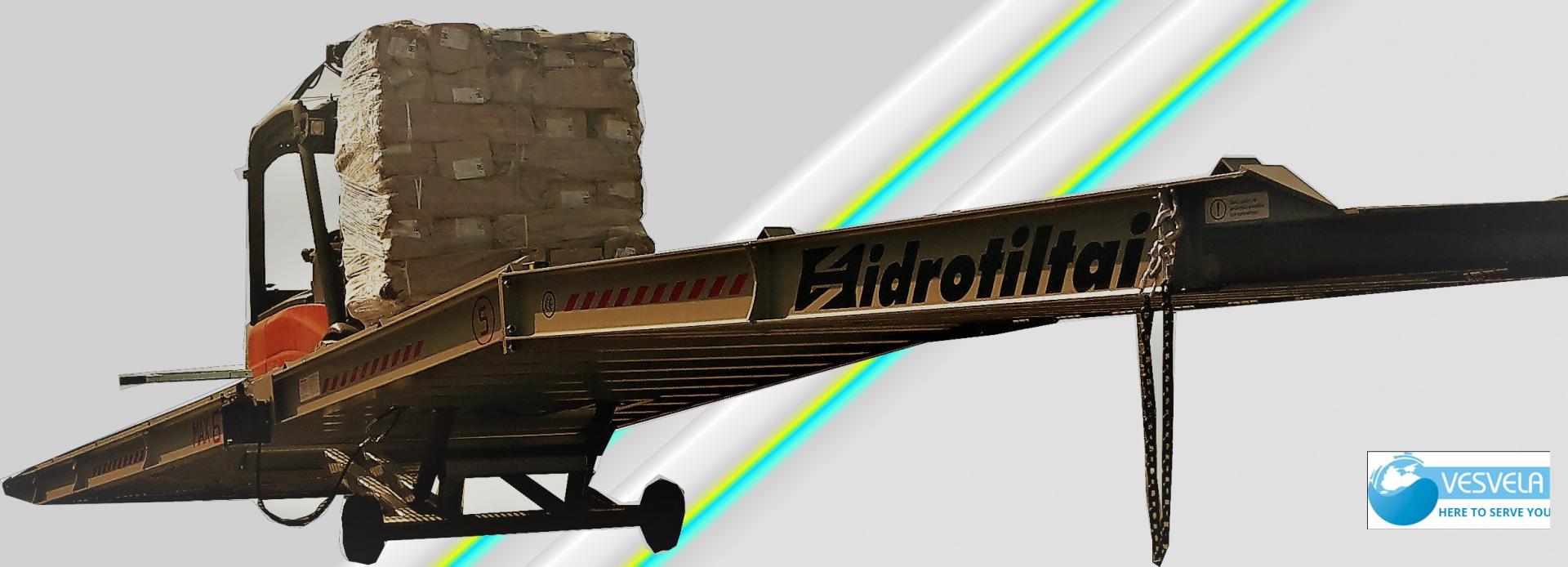

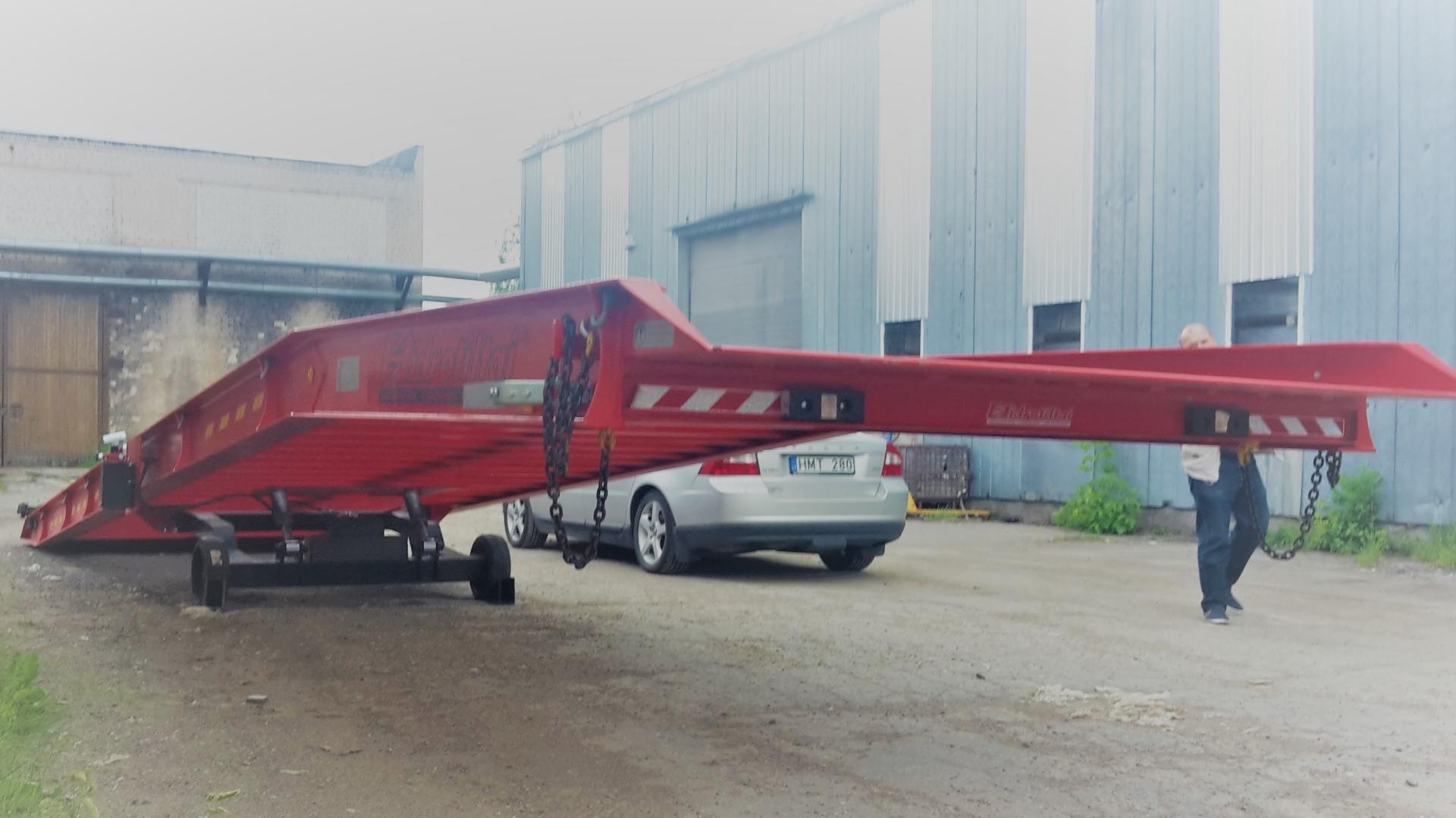

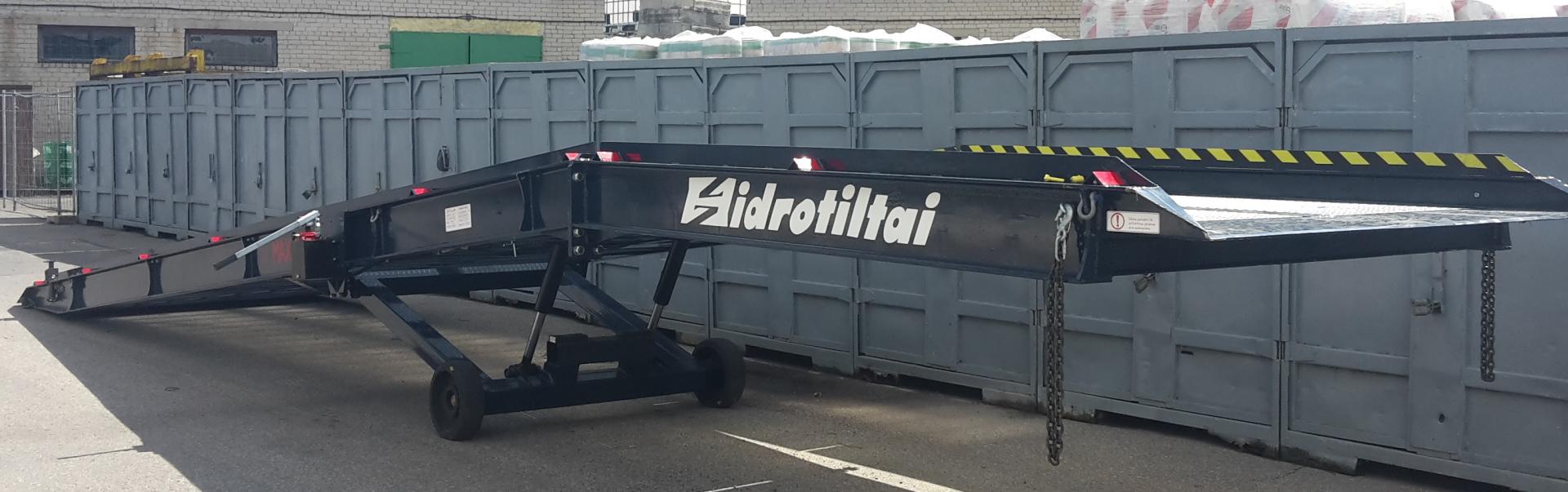

MOBILE LOADING RAMPS8 tons with manual management
MODEL : MR8_12x2.2_0.5 tested according to standards LST-EN -1526. Tested MS ( maintenance service . Capacity 8 tons.
DIMENSIONS: Width (B): 2200mm
Width (b): 2000mm
Lenght (L): 12000 mm
Height (H): 1450 mm
Stroke (H-h): 750 mm
Support (R): 5600mm
Platform (RH): 3050mm
Tiltelio plotis ( parts is placed on the support) 450mm
PLATFORM: Longitudinal load-bearing beams welded from IPE IPE300 , lateral connections used profile IPE100, increase the rigidity of the platform is made diagonal design through the use of binding strips 80x6. Front bridge made of 12mm thickness, 400mm in width, the longer side milled. Frame and hydrocylinders connections produced by laser cutting 10mm thick loops. Termination bridge consists of 10mm thick sheet with stiffening ribs and transverse welded metal pins 8x8.
FRAME: Made from tube 120x120x5, Laser-cut connectors.
Frame connector used in compensating bearings.
Connection axis used 45mm diameter calibrated rod.
COVERAGE: Before painting node cleaned with a wire brush, cleaned special liquid. Covered with one layer of primer and two coats of polyurethane paint.
THE BRIDGE FRONT: Construction welded from 10mm thick sheet.
REAR BRIDGES: Construction welded from 10mm thick plate, and a special Laser-cut stiffeners.
GRID : rods and welded from 4mm thick and 40mm in height toothed (serrated) bands. Galvanized.
WHEELS: 358mm in diameter and 100mm in height abrasion resistant SOLIDIDEAL company.
HYDRO: : -2 Units Cylinders
Cylinder type – Piston
Pump-type piston
Tank capacity - 8 liters
Oil- NESTE 46
Operating temperture --30ºC - + 50 ° C
SAFETY: „Zebra“ type of moving parts marking.
Hydro lines infringement protection.
Chain links with piled transport.
Deck grating tooth.
Night lighting
Bearing capacity (max) 8000kg.
DEVICE COLOR:
Still nodes - RAL 7037 ,
Moving nodes - RAL 5014
Marking - RAL 1003
All elements of the collection galvanized.
The product is cleaned before painting a wire brush.

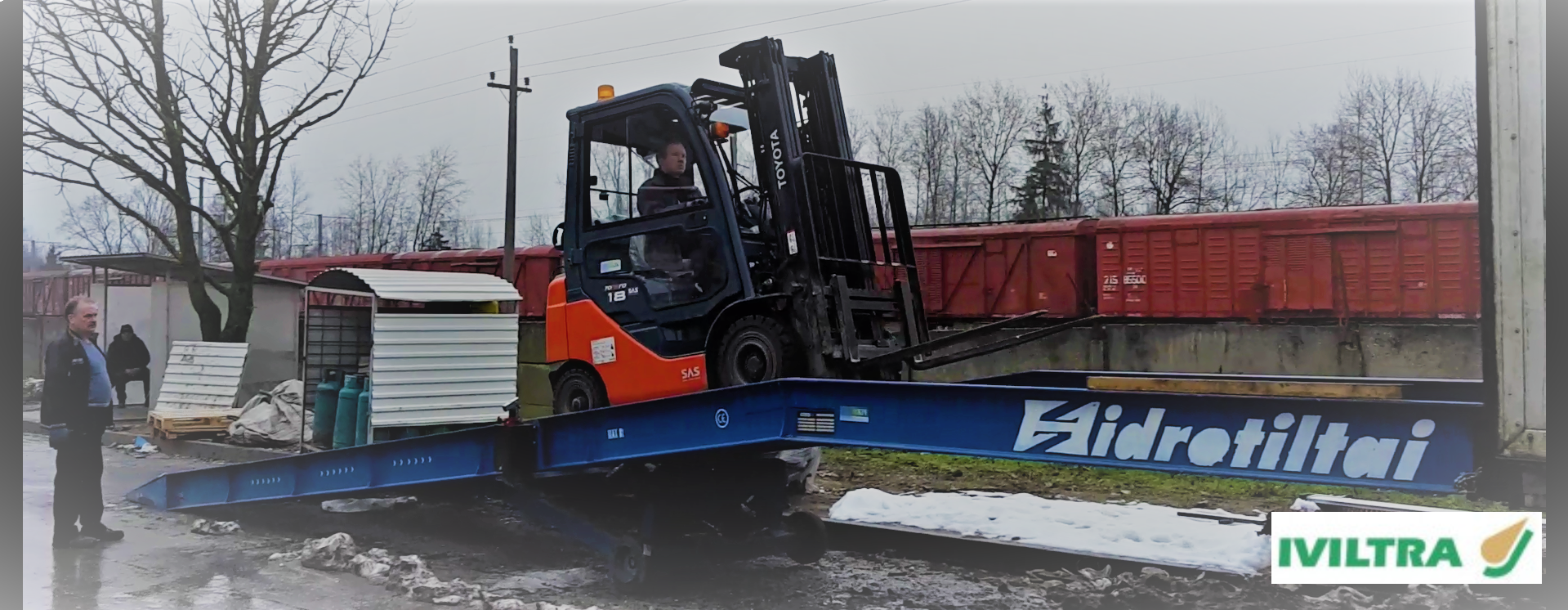

The ramps of this model are controlled by a manual hydraulic pump. Before the trailer is parked on the front axle of the ramp, the hydraulic hand pump is used to lift the rake section. The truck trailer with the open tailgate is then parked under the front axle of the ramp. Then the non-return valve of the hydraulic pump is opened and the ramp bridge slowly descends onto the floor of the trailer. At the front of the ramp, the chains on both sides are retracted through the holes in the rear side of the trailer and fixed to the special anchors on the ramp. Loading can be started.
Short description of operation of MR6_7.5x2.2_0.5:
1. The device may only be operated when the bridge is placed on a stationary support and secured to its chains.
2. During charging, the main valve of the hydraulic system must be opened.
3. Drive on:
with load up to 10km / h
without load at speeds up to 20km / h.
8 tons with manual operating
